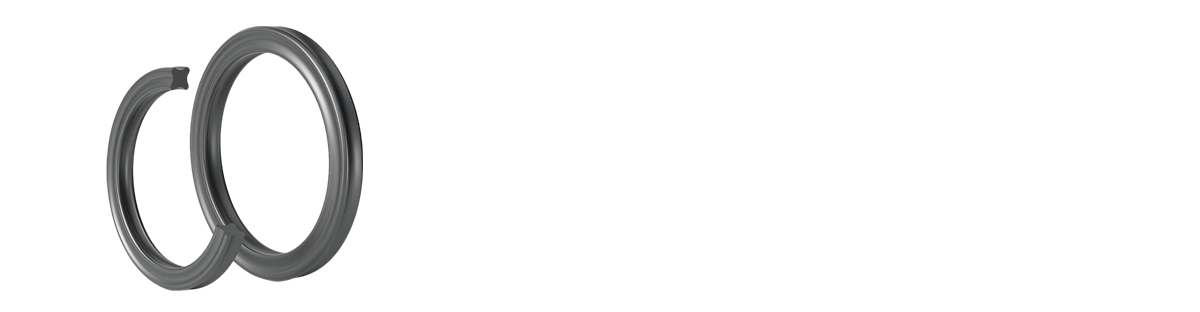

产品概述

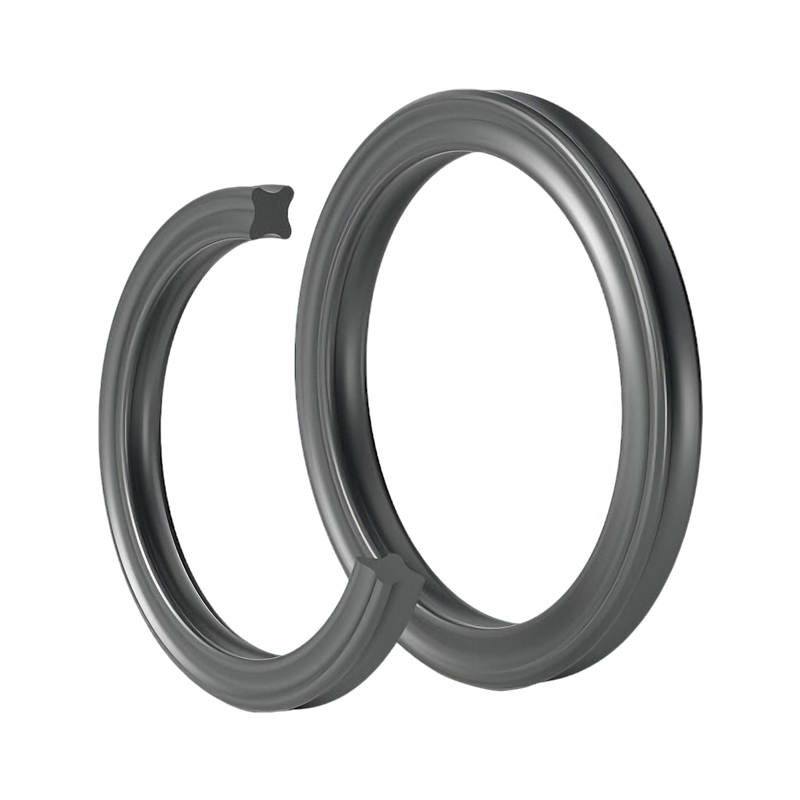

星形密封圈为四唇口密封结构，外形类似字母X，因此也被称作X型圈。它在O形圈的基础上优化并提升了各项性能，标准尺寸与美国AS568标准O形圈规格完全一致，可在绝大多数工况下替代O形圈使用。

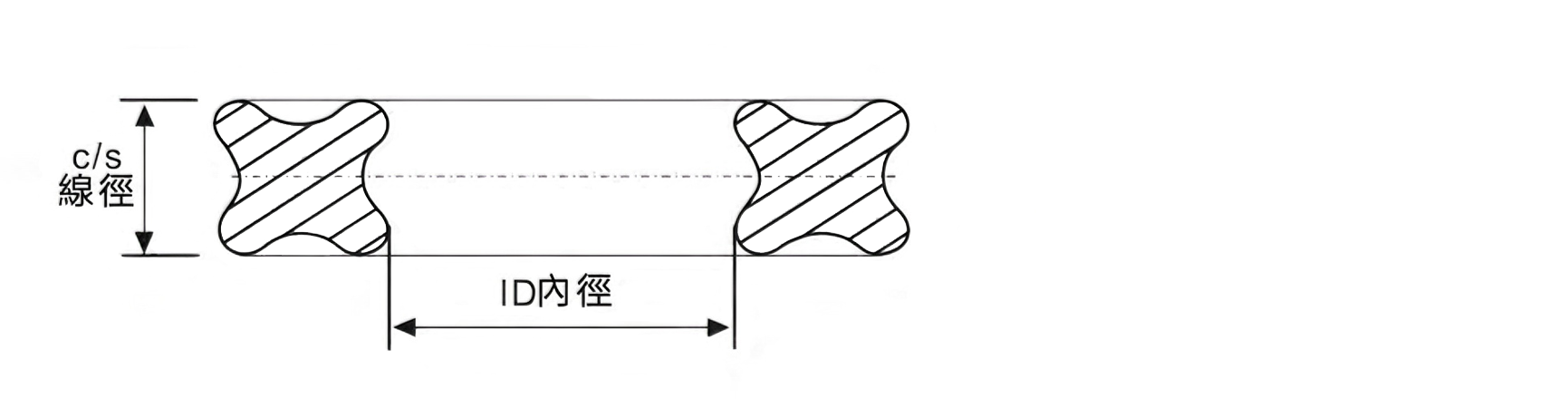

尺寸图


规格表

型号	内径	线径	型号	内径	线径
001	1.78	1.78	051	20.22	3.53
002	2.57	1.78	052	23.40	3.53
003	3.69	1.78	053	26.58	3.53
004	5.29	1.78	054	29.75	3.53
005	7.65	1.78	055	32.93	3.53
006	9.25	1.78	056	36.09	3.53
007	12.42	1.78	057	40.87	3.53
008	15.60	1.78	058	47.22	3.53
009	18.77	1.78	059	59.92	3.53
010	20.35	1.78	060	78.97	3.53
011	23.52	1.78	061	98.02	3.53
012	26.70	1.78	062	117.10	3.53
013	29.87	1.78	063	136.12	3.53
014	31.47	1.78	064	158.30	3.53
015	34.65	1.78	065	202.80	3.53
016	41.00	1.78	066	10.46	5.33
017	47.35	1.78	067	12.07	5.33
018	50.52	1.78	068	15.24	5.33
019	72.75	1.78	069	18.42	5.33
020	126.72	1.78	070	21.59	5.33
021	2.84	2.62	071	24.77	5.33
022	3.63	2.62	072	27.94	5.33
023	5.23	2.62	073	29.51	5.33
024	7.60	2.62	074	32.69	5.33
025	10.78	2.62	075	37.47	5.33
026	13.95	2.62	076	43.82	5.33
027	15.54	2.62	077	50.16	5.33
028	18.72	2.62	078	69.22	5.33
029	21.89	2.62	079	88.27	5.33
030	25.07	2.62	080	97.80	5.33
031	28.25	2.62	081	116.84	5.33
032	29.84	2.62	082	135.89	5.33
033	32.99	2.62	083	135.89	5.33
034	36.17	2.62	084	196.22	5.33
035	39.35	2.62	085	658.88	5.33
036	42.52	2.62	086	34.29	6.99
037	44.12	2.62	087	37.47	6.99
038	47.29	2.62	088	43.82	6.99
039	50.47	2.62	089	46.99	6.99
040	60.00	2.62	090	59.69	6.99
041	69.53	2.62	091	69.22	6.99
042	75.88	2.62	092	88.27	6.99
043	113.97	2.62	093	97.79	6.99
044	152.07	2.62	094	116.84	6.99
045	202.87	2.62	095	126.40	6.99
046	4.34	3.53	096	126.40	6.99
047	7.52	3.53	097	158.12	6.99
048	10.69	3.53	098	196.22	6.99
049	13.87	3.53	099	202.57	6.99
050	17.04	3.53	100	658.88	6.99


产品特点

星型圈之设计为 X 型四唇结构，可直接适配 O 型圈沟槽替换使用，特别适用于往复运动密封工况。它双向密封，唇间可储油润滑，抗扭转不易翻边，静密封承压可达 5MPa，加装挡圈承压更高。

典型应用领域

液压气动：油缸、气缸、阀杆往复密封，防液压油渗漏，高频往复不易扭翻。

汽车交通：变速箱、减震、冷却油路密封，耐受机油、冷却液，高低温稳定。

重工机械：工程机械、注塑机液压部件密封，适配中高压重载连续工况。

食品医药：灌装泵、医疗流体阀密封，合规无析出，耐清洗消毒介质。

精密设备：半导体真空阀、检测仪器密封，低泄漏，适配高纯耐腐蚀环境。

通用阀泵：水泵、调压阀、小型泵体动静密封，常温轻载，防尘防渗漏。
