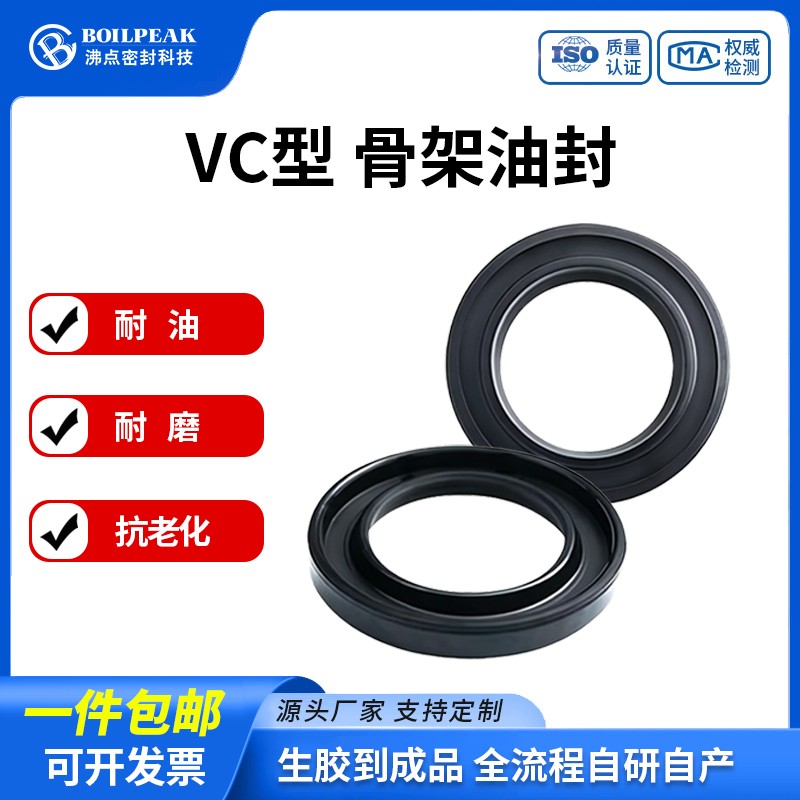

VC型骨架油封

售价:

￥100/1

数量:

商品介绍
商品评价

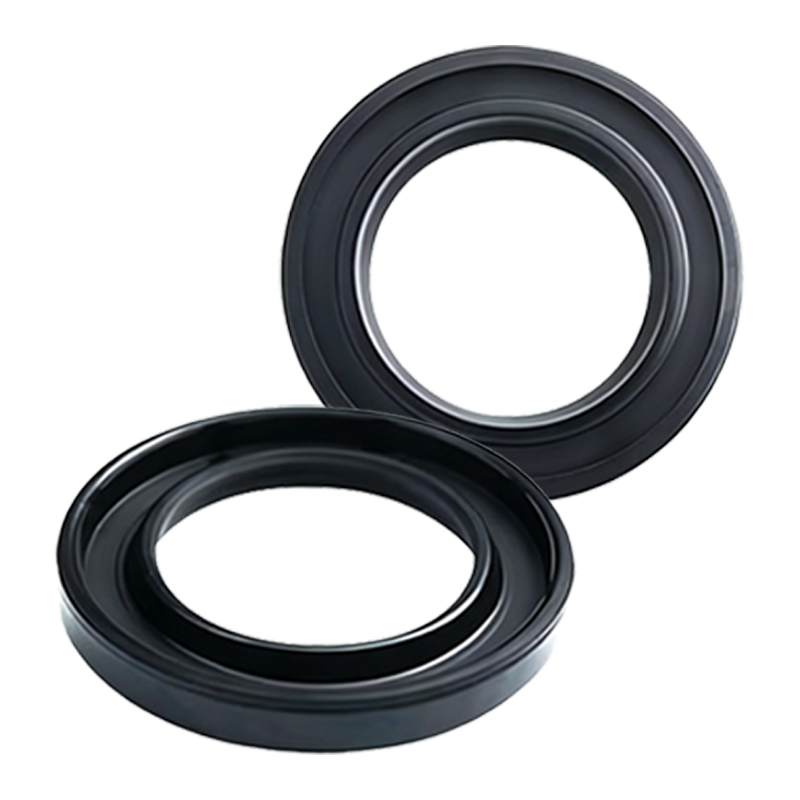

产品概述

VC 型骨架油封是专为旋转轴设计的单唇口无弹簧式橡胶骨架油封，采用外围全橡胶包覆结构，是一种低摩擦、防尘型轴用密封件，适用于各类机械设备的旋转轴防尘与低压密封场景，尤其适配腔体表面受损或软质合金、塑性胶体材质的装配环境。尺寸通常以轴径d×外径D×宽度h定义。

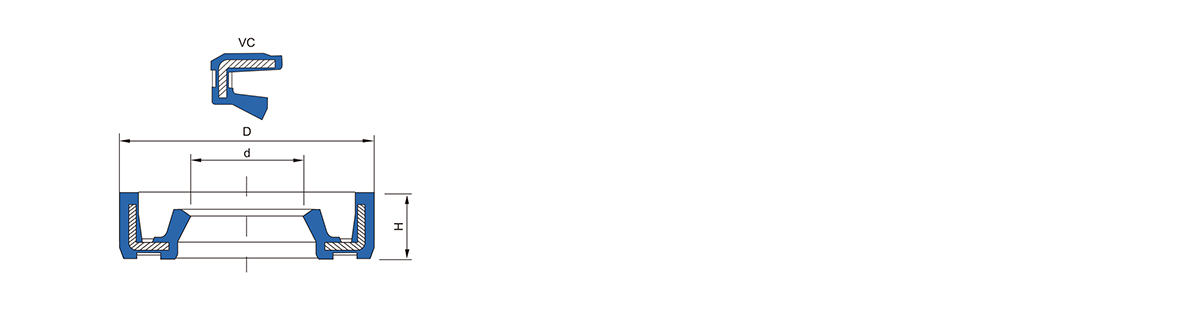

尺寸图


TYPE	dDH	TYPE	dDH	TYPE	dDH
VC	10223	VC	22304	VC	44656
VC	10244	VC	23283	VC	45705
VC	11173	VC	24324	VC	47585
VC	12193	VC	25307	VC	48657
VC	12323	VC	25425	VC	50584
VC	13193	VC	28354	VC	50688.5
VC	14204	VC	29384	VC	55635
VC	14329	VC	30385	VC	60826
VC	15196	VC	30456	VC	74957
VC	15284	VC	31444	VC	80906
VC	16214.5	VC	32526	VC	801057
VC	16264.5	VC	35424	VC	901056
VC	17225	VC	35626	VC	1001258
VC	17355	VC	38505	VC	1121307
VC	18244	VC	38624	VC	1201357
VC	18329	VC	40452	VC	15016015
VC	19253.5	VC	40494	VC	180199.28
VC	20264	VC	40525	VC	19020015
VC	20407	VC	40626	VC	21024015
VC	21313.5	VC	43534	VC	2452607


产品特点

外围橡胶之设计，适用于各种材质之装配环境，可适用软质合金或具有塑性变型之胶体，在腔体表面受损时它是密封用。单唇口无弹簧，低摩擦系数，具有防尘作用，约耐0.03Mpa。

典型应用领域

汽车工业：车桥轮毂外侧、底盘半轴的防尘防护、减震器连杆密封。

通用工业设备：各类电机端盖、齿轮箱/减速机的非加压区、风机主轴外端。

工程机械：农业机械/挖掘机开放传动轴的外围防尘、行走机构轴承的外部防泥水密封。

家用电器：洗衣机电机、风扇转轴、空调风扇的防尘消音密封。

￥100
