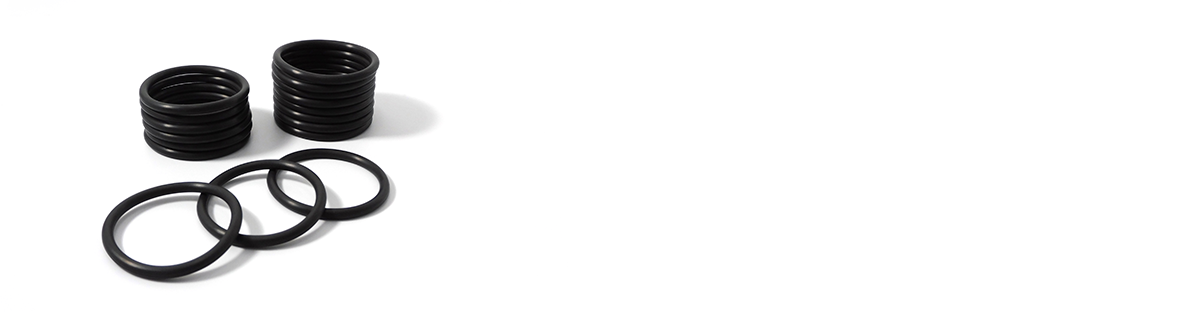

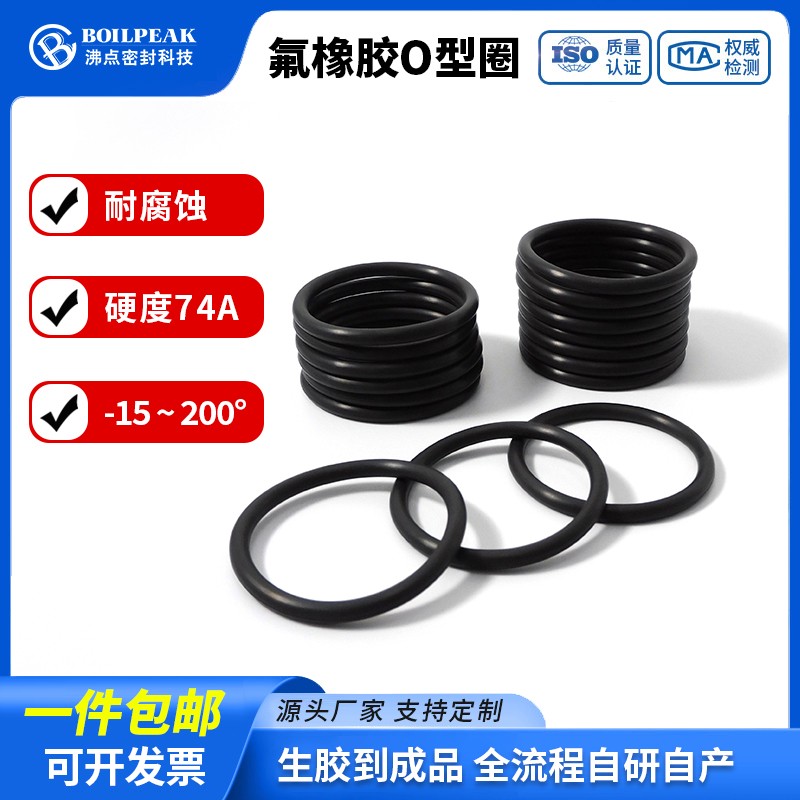

全部结果 O型圈氟橡胶(FKM) FV-210/黑色/耐油耐磨/氟橡胶O型圈

FV-210/黑色/耐油耐磨/氟橡胶O型圈

售价:

￥100/1

数量:

商品介绍
商品评价

产品概述

FV210 是一款专为高温、强腐蚀等严苛工况设计的高性能氟橡胶材料，凭借高度氟化的分子结构，具备卓越的耐高温性、耐化学腐蚀性、耐油性与耐老化性能，是工业领域应对复杂介质与高温环境的优选密封材料。

尺寸图

· 美国标准AS568，线径有1.78mm、2.62mm、3.53mm、5.33mm、6.99mm，内径有1.24mm~658.88mm的大部分规格

· 中国标准GB3452.1，线径有1.8mm、2.65mm、3.55mm、5.3mm、7mm，内径有1.8mm~670mm的大部分规格

· 日本标准JISB2401P系列，线径有1.9mm、2.4mm、3.5mm、4.5mm、5.7mm、8.4mm，内径有1.8mm~1499.50mm的大部分规格

材料特点

1. 卓越的高温耐受能力：最高工作温度可达200℃，且在204℃高温环境下经过70小时压缩测试，永久变形仅25%，展现出优异的高温稳定性与弹性回复性，可长期在高温工况下保持可靠密封性能。

2. 极强的耐化学与耐介质性能：高度氟化的分子结构赋予材料出色的耐酸碱、耐有机溶剂、耐燃油与耐矿物油性能，对多数工业化学介质均有良好耐受性，可应对复杂腐蚀工况。

3. 优异的耐老化与耐候性能：具备极强的耐臭氧、耐紫外线与耐高温老化能力，长期使用不易出现脆化、龟裂或性能衰减问题，使用寿命远优于通用橡胶材料。

4. 均衡的机械性能：13.87 MPa的拉伸强度搭配272%的拉断伸长率，兼顾了足够的结构强度与韧性，可适配静态或低动态工况下的密封需求，不易因形变或冲击出现开裂失效。

5. 标准级品质管控：所有性能指标均通过ASTM/ISO国际标准方法测试，批次稳定性高，可满足批量工业生产的一致性要求。

核心性能特点

· 硬度：74 Shore A，测试标准 ASTM D2240

· 密度：1.85 g/cm³，测试标准 ISO 2781

· 100%定伸模量：5.61 MPa，测试标准 ASTM D412

· 拉伸强度：13.87 MPa，测试标准 ASTM D412

· 拉断伸长率：272 %，测试标准 ASTM D412

· 压缩永久变形（70h@204℃）：25 %，测试标准 ASTM D1414

· 最高工作温度：200 ℃

· 最低工作温度：-15 ℃

典型应用领域

FV210氟橡胶凭借其耐高温、耐强腐蚀的核心优势，广泛应用于：

- 化工、石油设备中接触腐蚀性流体的高温密封件

- 汽车发动机、排气系统的高温油介质密封部件

- 半导体、电子设备中耐化学腐蚀的密封件

- 工业锅炉、高温管道的耐温密封组件

- 对耐温、耐化学性有高要求的通用工业密封场景

补充说明

本材料为黑色FKM氟橡胶，硬度74 Shore A，适配绝大多数标准密封件结构。实际使用时，需结合具体介质、压力和工况温度进行兼容性验证，以确保长期使用可靠性。
